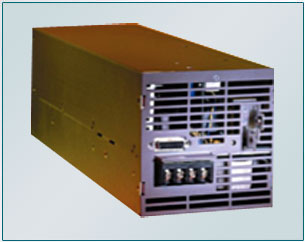

Power-One FE5A-12V Power Supply

DC Output Characteristics (Floating)

Output Power: 5000 Watts (maximum continuous power, may require derating for some low voltage outputs)
Minimum Load: Not Required
Line Regulation: ±1.0% Typical
Load Regulation: ±2.0% Typical (No load to full load; nominal input)
Output Ripple/Noise: 1% Typical (pk-pk; nominal input; full load; 20-50MHz bandwidth)
Hold Up Time: 12 mSec after ac is removed
Set Point Accuracy: ± 1.0% of Output Voltage (Nominal input; full load; 25°C)
Transient Response: Output voltage returns to within 3% in less than 2.5mS for a 50% load change and the peak transient does not excess 5%.
Overshoot: Turn-on and turn-off overshoot should not exceed 5% over nominal voltage.

Electrical Characteristics

Switching Frequency: 200KHz Fixed
Efficiency: 85% Typical (Measuring at 480Vac and at full load)
Turn On Delay: 2.0 second maximum at 480 VAC
Isolation Voltage: Input to Case: 2120Vdc, Input to Output: 4200Vdc & Output to Case: 500Vdc
Temperature Regulation: +/-2.0%/ºC (+/-.005%/ ºC max; over operating temp range)

Protection

Over Current Limit: ~102 to 108% of maximum rating. Hiccup, continuous.
Over-Voltage Protection: 115% ±5% of nominal. OVP shutdown is latched until the input line is removed for 5 Secs and then reapplied. OVP sensing is done at the output terminals.
Short Circuit: Auto-Recovery after short circuit condition is removed.
Over Temperature Protection: Automatically latches and shuts off the unit in the event of an over temperature condition. After cool down, power must be recycled to restart unit.

Environmental

Operating Temperature: 0º to +50º C
Storage Temperature: -55º to +85º C
Operating Humidity: 20% to 95% RH, Non-condensing
Storage Humidity: 5% to 95% RH, Non-condensing
Operating Altitude: Operating: 5,000 feet. De-rates to 75% at 15,000 feet. Non-Operating: To 30,000 feet.
Sock: Operating: 5G, half sine, 11msec, 3 axes. Non-Operating: 15G, half sine, 11msec, 3 axes
Vibration: Operating: From 5 to 27 Hz, 0.02 in double amplitude; from 27 Hz to 500 Hz, 0.75G, 3 Axes, 3 min per octave sweep, dwell 15 min at resonance. Non-operating: From 5 to 17 Hz, 0.10 in double amplitude, from 17 to 500Hz, 1.5G peak; 3 axes, 5 min per octave sweep; dwell 15 min at resonance.
Conducted EMI: Designed to meet Conducted & Radiated: EN55022 Level A.
Cooling: Forced air, internal fan. Airflow exits at connector end.

Safety Agencies

Mechanical

Outline Dimensions: ~5.0" X 5.0" X 15.5" (H X W X L) – not including I/O connector
Weight: ~16 lbs.
AC Input Connector: Barrier Strip
Output Connector: Bus Bars
Logic/Controls Connector: 25 pin D-sub

Additional Features, Controls or Alarms

Notes

Some specifications have not been tested for actual compliance and cannot be guaranteed to meet 100% compliance during system testing.
The information and specifications contained in this document are believed to be correct and accurate at the time of publication. DSC Power Solutions, Inc. accepts no responsibility for consequences arising from printing errors or inaccuracies pertaining to any use or application of this document.
